Connectors identification

In AutoCAD Plant 3D the Connectorsare mapping Assets Attachment Points. Any changes to the Attachment Points in the Plant 3D environment will reflect in the AseptSoft Connectors.

To modify the Attachment Points in AutoCAD Plant 3D:

Go to the class you want to modify in the Project Setup, and press “Edit Block”:

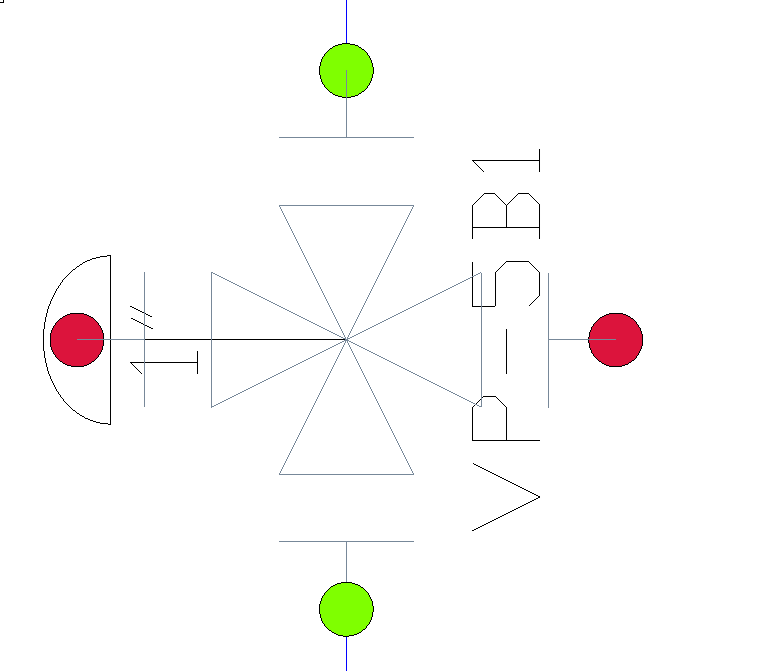

Modify the Attachment Points:
