IntelliBlocks
In today's rapidly evolving industrial landscape, many companies are still burdened by legacy P&IDs created decades ago. These drawings, often over 20 years old, were designed and stored in low-quality formats, reducing them to a collection of raw geometries—lines, arcs, and basic shapes. As a result, they lack the crucial intelligence required for modern software solutions, which rely on data-rich, interactive diagrams for efficient operation and analysis.
IntelliBlocks® was born out of the need to bridge this gap between outdated legacy data and modern intelligent design. This innovative AutoCAD plug-in transforms static, geometry-based drawings into smart, data-driven diagrams that integrate seamlessly with today's advanced engineering tools. Rather than requiring a complete manual recreation of the drawings, IntelliBlocks® automatically detects and reconstructs the elements, converting raw geometries into intelligent blocks.

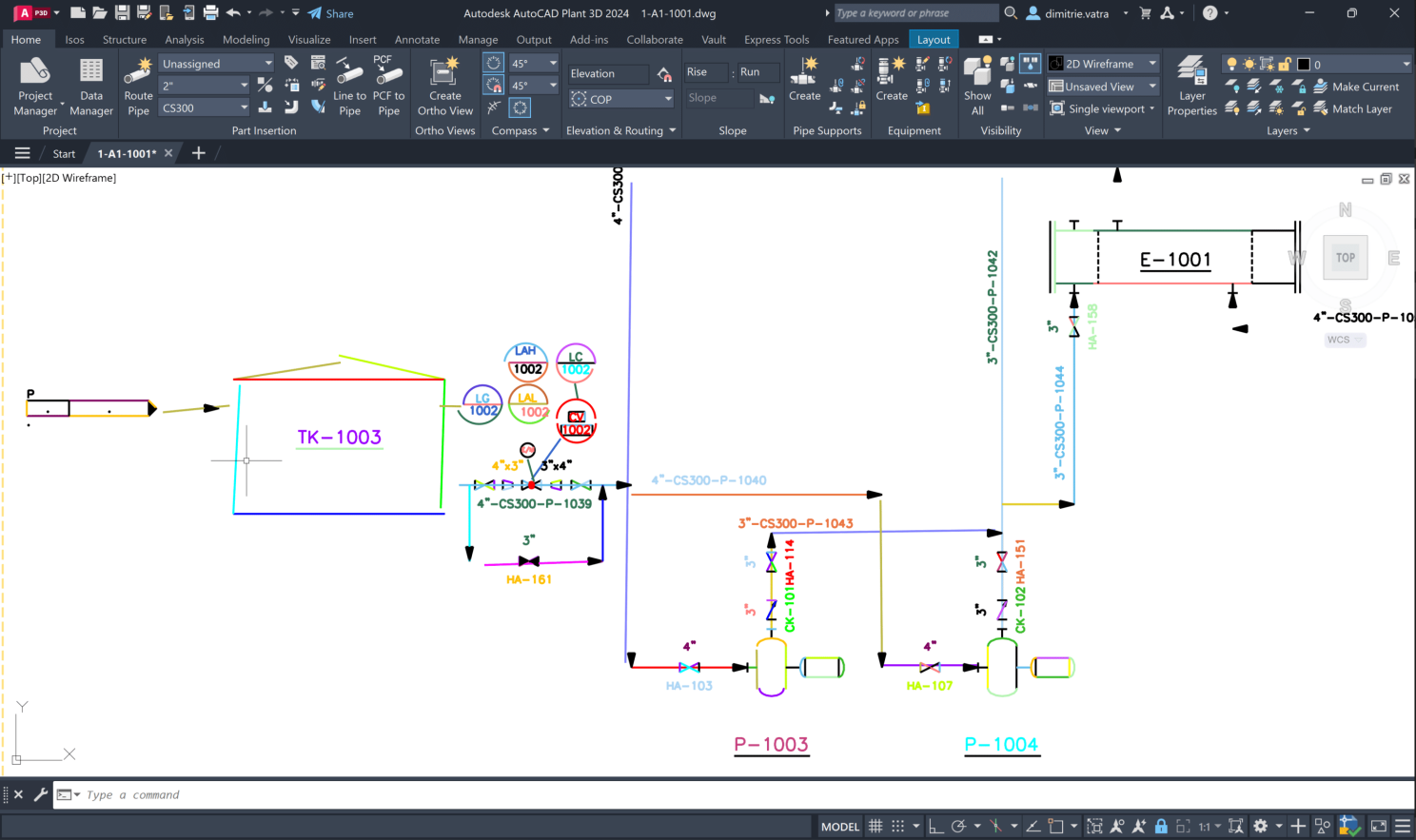

One of the critical challenges in upgrading these older P&IDs is the inherent imprecision in the original drawings. Over time, minor deviations and placement errors have crept into these documents. IntelliBlocks® is engineered with a high tolerance for such imperfections, meaning it can accurately recognize and reconstruct blocks even when the geometries do not perfectly match the expected patterns. This robustness makes it an ideal tool not only for upgrading legacy designs but also for re-healing drawings from external sources—particularly those that have been degraded by processes such as bursting or exploding geometries.
By restoring and enriching these aged drawings, IntelliBlocks® helps unlock the full potential of your design data. It ensures that you can leverage modern design functionalities, improve workflow efficiency, and maintain consistency across projects—all without the need to painstakingly redraw every element from scratch.
Key Features
Smart Block Replacement: Detects standard shapes and replaces them with intelligent blocks.
Automated Upgrades: Updates multiple drawings at once, ensuring consistency across your projects.
Aesthetical Consistency: Preserves the original look of your P&IDs by carrying over visual properties.
User-Friendly Interface: Gives quick controls to preview, process, and track changes as you work.
Typical Workflow
Open Your Drawing: Select the P&ID file you want to enhance.
Initiate Upgrade: Use IntelliBlocks to scan for replaceable shapes.
Review Changes: View and confirm detected objects before processing.

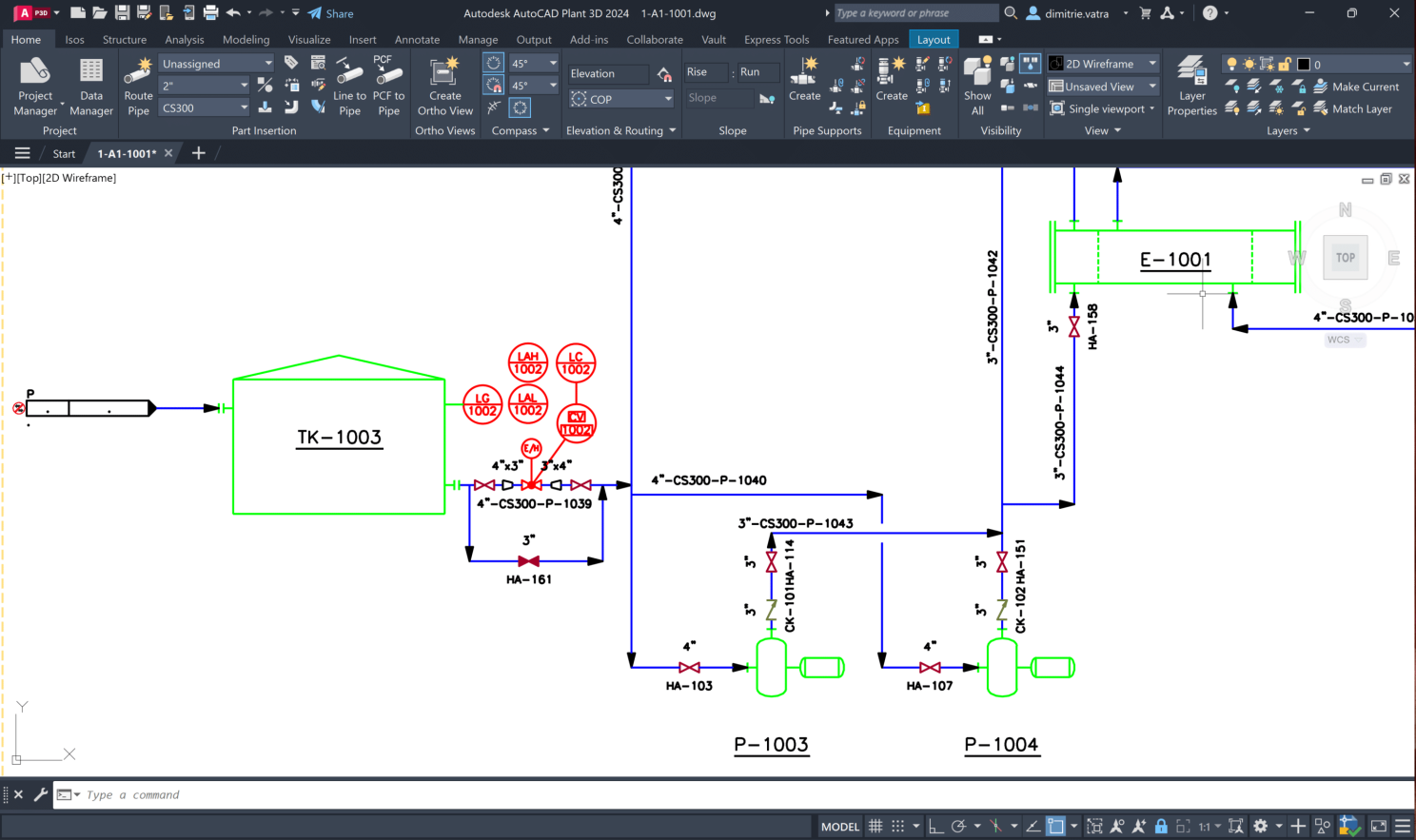

Apply Replacements: Transform raw shapes into intelligent blocks with one click.
With IntelliBlocks, you can maintain uniform standards, improve clarity, and cut down on repetitive tasks—all within the familiar AutoCAD environment.
